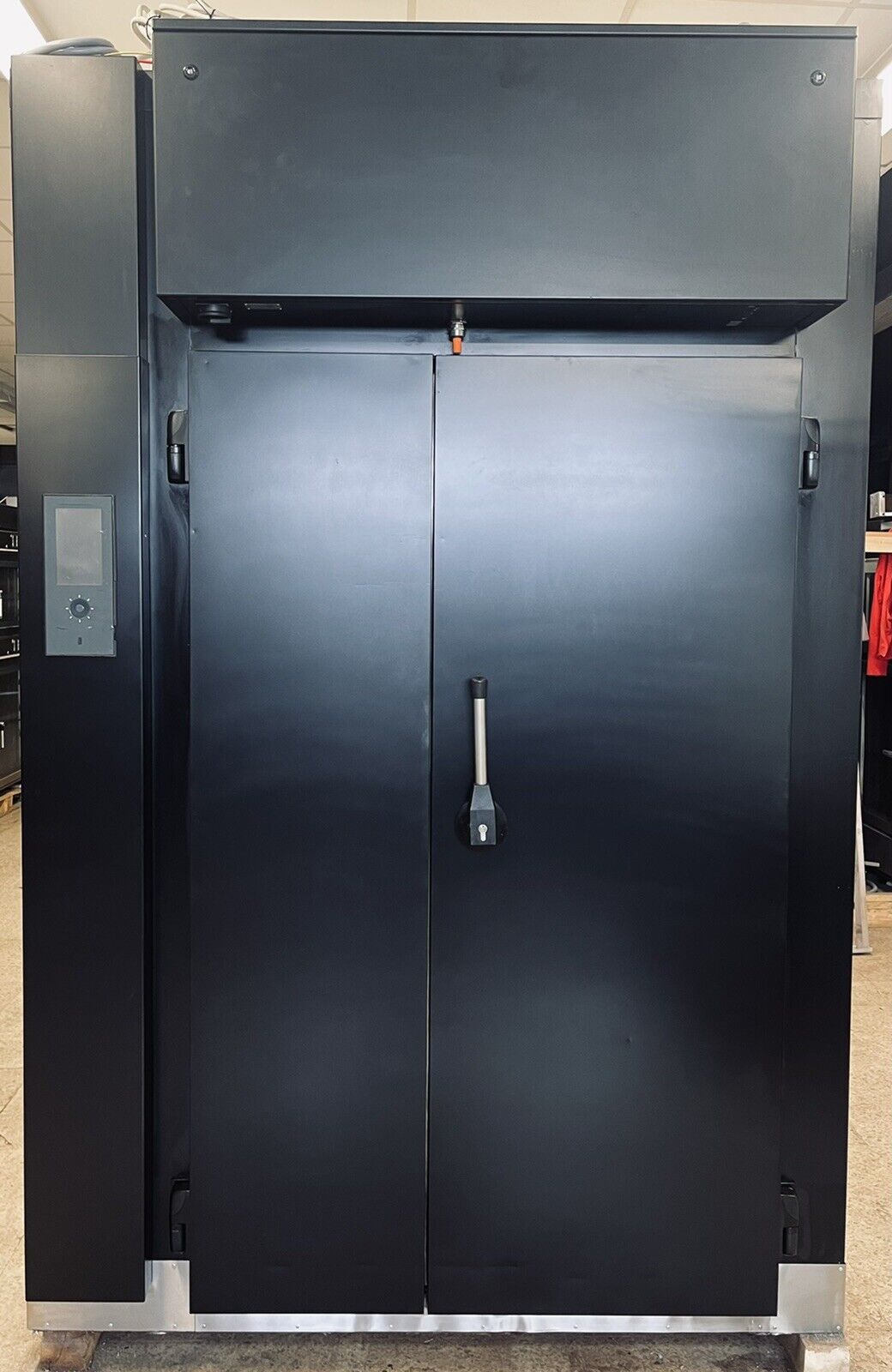

Fully automatic fermenter, Miwe GVA 22 LD, built in 2017, used

Miwe GVA 22 LD fully automatic fermenter without compressor.

Bulky goods

Used system

Year of manufacture 2017

MIWE fully automatic fermentation machine

- Type: GVA 22 LD-S

- Temperature range: -20°C to +40°C

- Relative humidity: adjustable up to 98%

- Support size: 580/780 mm

- Type of support: sheet metal support

- Occupancy per rack trolley: approx. 45 kg

- Product: rolls/rolls

- Product weight: 50 - 70 g

- Product condition: green dough pieces

- Installation temperature: + 25° C

- Cooling period: 3 hours

- Final temperature: - 7° C in the core

- Operating instructions: German

!!!!!Compressor for the GVA is not included!!!!!!!

This paragraph is just the description, the technical data of the associated compressor:

- Type: MCH8ZB26KETFD

- Machine type: condensing unit

- Cooling capacity: 6,600 W (at -10° C VT and + 40° C KT)

- Motor power: 2.6 kW / 3.54 HP (at -10° C VT and +40° C KT)

- Refrigerant: R 449 A

- Capacity of refrigerant: approx. 6 kg

GVA evaporator (type 1)

- Type: SGAEMW13

- Evaporator area: 52.8 m2

- Slat spacing: 4 mm

- Delivery: partially assembled

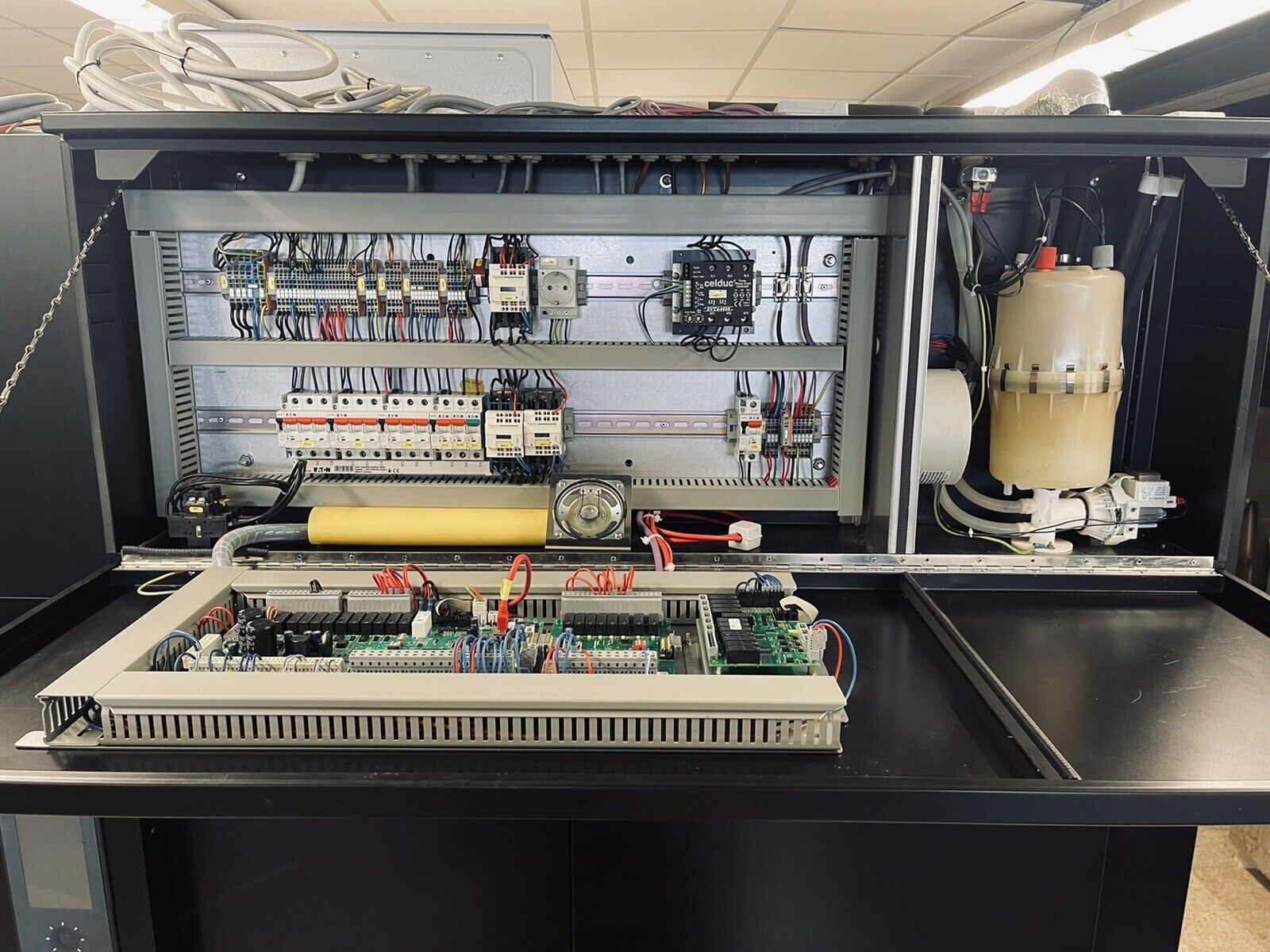

GVA control cabinet

- Switch box width: 1300 mm

- Control box design: wall cabinet

- Control: MIWE TC touchscreen control

- Control installation location: in a control column

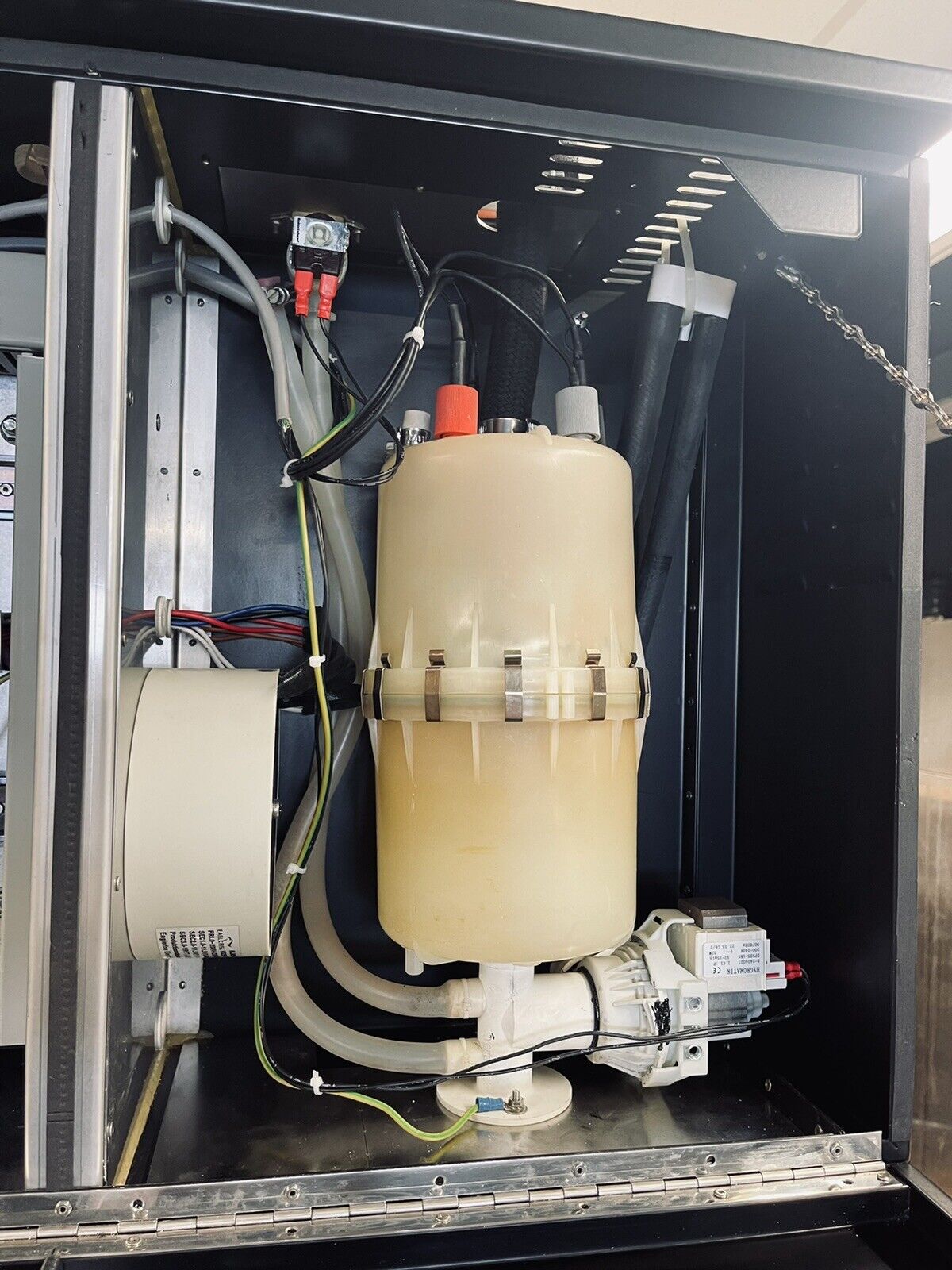

- Humidification device: with steam cylinder

- Number of steam cylinders: 1

- Steam cylinder performance: 6 kg/h

- Max. power consumption (heating): 10 kW

- Max. operating current: 17 A

- Electrical connection: 400/230 V: 3/N/PE 50 Hz

GVA control cabinet machine TC

- Control box size: 600 x 600 x 210 (W x H x D)

- Position: at the chiller

- Electrical connection machine N2: 3 kW (at operating point) / 11 A

- Electrical connection: 400/230 V; 3/N/PE 50HZ

- The control box is not mounted on the machine, but must be in

mounted close to the machine

Appropriate space must be planned. The switch box must

be covered on site.

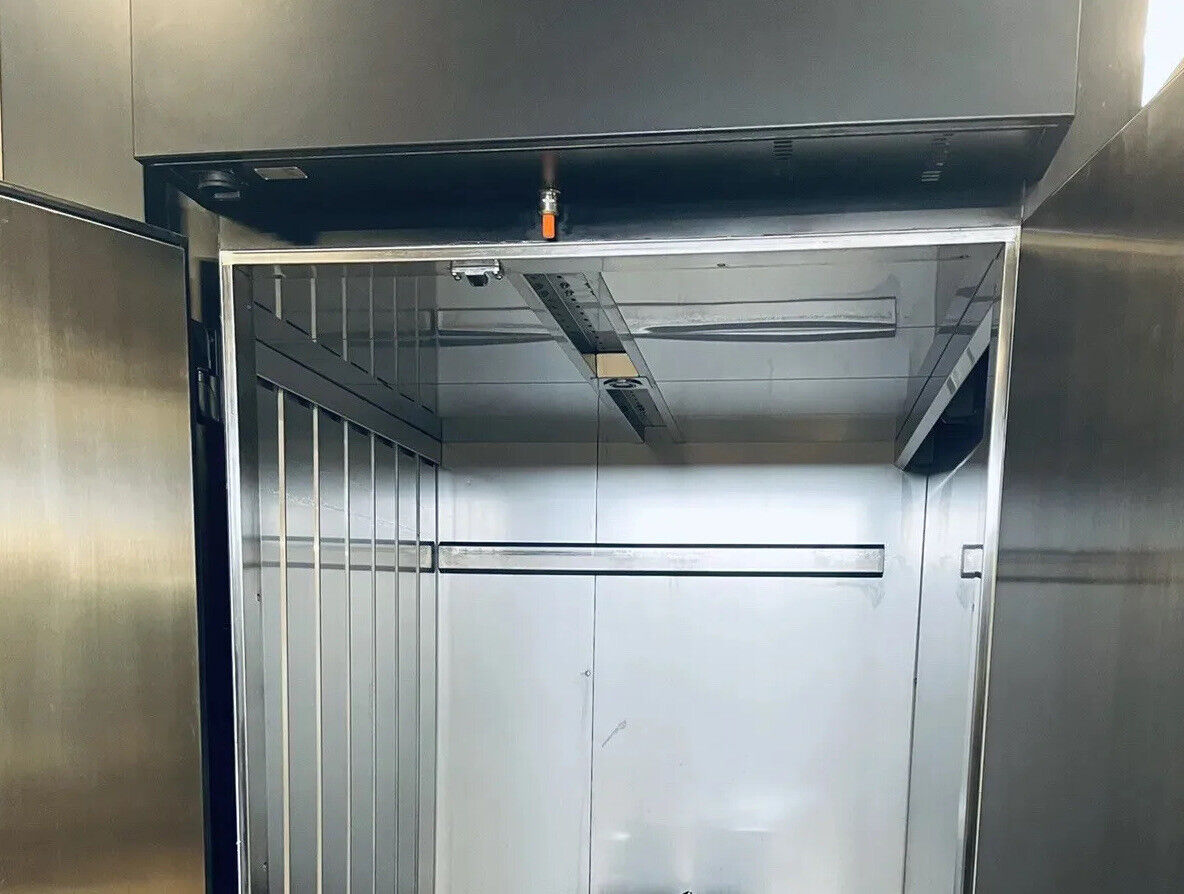

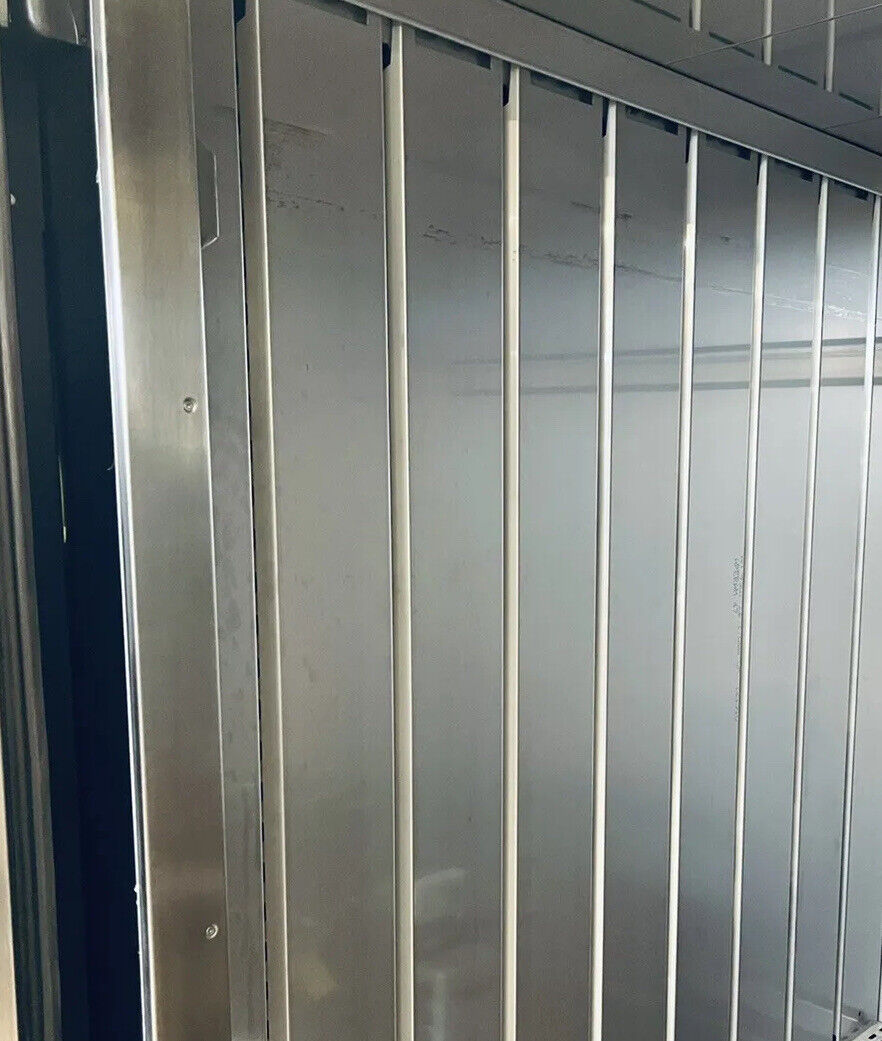

GVA interior design

- Pressure wall: left

- Wall guide rail: right

- Impact protection inside: rear, front

- Impact protection design: stainless steel, 25 mm, two-layer

- False ceiling: in stainless steel

- Lighting: LED

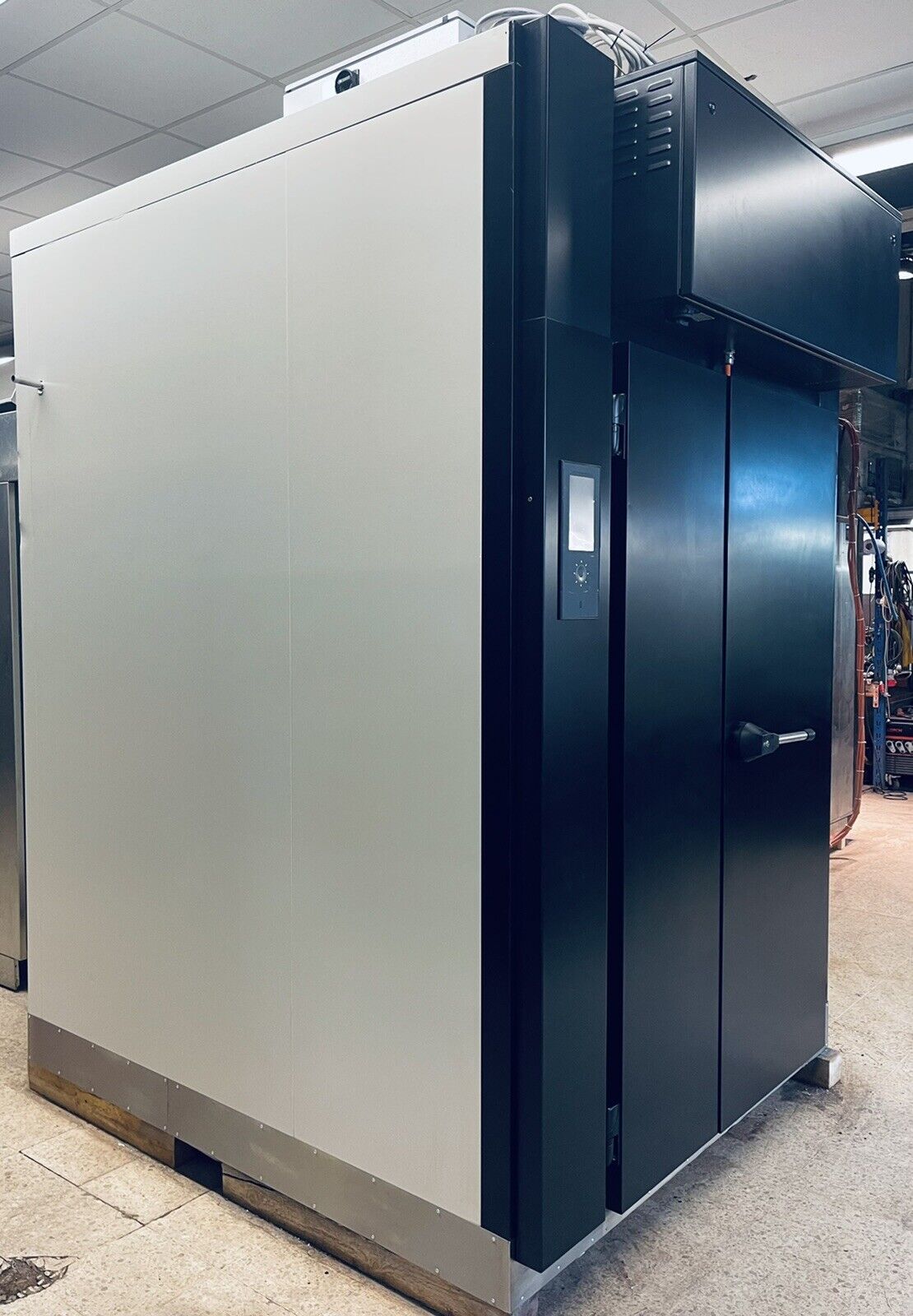

GVA cell

- External dimensions: 1760 x 1960 x 2640 mm (W x D x H)

- External wall thickness: 80 mm (0.274 W/m2 K)

- Ceiling thickness: 80 mm (0.274 W/m2 K)

- Floor thickness: 60 mm (0.390 W/m2 K)

Total weight: approx. 1800kg

Condition: see original pictures

Decoration is not the scope of services.

The oven has been cleaned and checked.

The device is fully functional.

Menu operation: German

Viewing and test runs are possible at any time in Gochsheim.
